FEATURES

√ Suitable for natural or mechanical ventilation, the SHG Multi-Span Poly Greenhouse has a unique roof vent design which allows for maximum cooling: the bottom rail of the vent opens above the ridge, eliminating trapped hot air. An additional benefit of the raised bottom rail is the ability to easily vent regardless of outdoor conditions.
√ Designed to readily accept hanging baskets, lights, booms, echo systems, and other needed equipment, the truss system can be designed to support each piece of supplementary equipment without additional structural members. This truss has also been designed for use with heat retention and shading systems, minimizing summer heat gain and winter heat loss.
√ With the bowed sidewall, you will benefit from added growing space immediately, while having the necessary components to expand later. Since the optional bowed sidewall utilizes standard components, expansion is easy with the addition of posts and gutter.
√ Available in standard and custom widths and heights to suit your needs. Complete design specifications and structural details are available.

SPECIFICATIONS

Gutter Extensions
There are many options in the gutter extensions depending on the situation:
• Open ended to let the water run off the greenhouse
• Welded end with no downspout
• Welded end with downspout

Crosstie
At each interior post there will be a crosstie joist which shall span across the structure at 12'-0"(3657.6mm) centers

Bar Joists

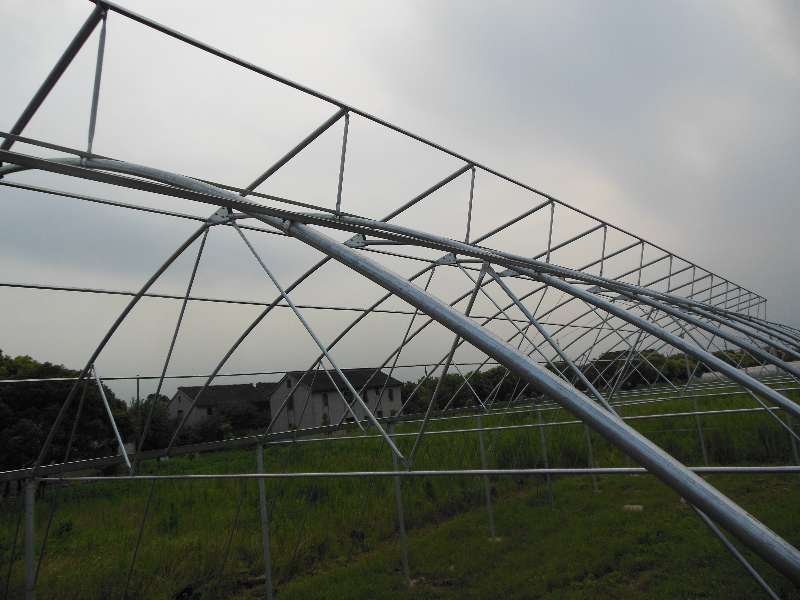

At each interior post is a bar joist spanning the width of the structure at 12'-0"(3657.6mm) centers. This not only substantially strengthens the structure, it also provides simplified installation of additional equipment such as:
• Hot Water Heating Systems

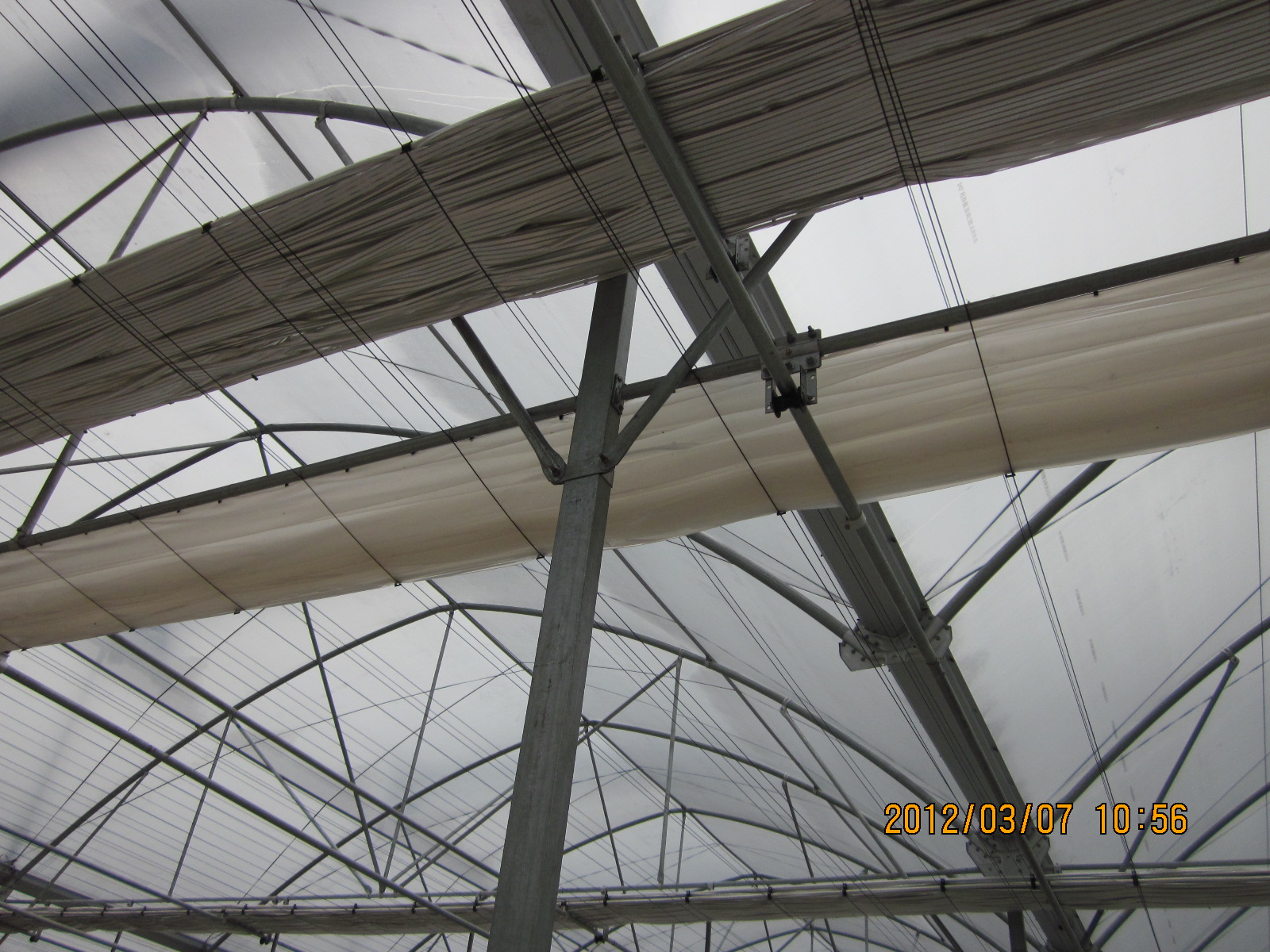

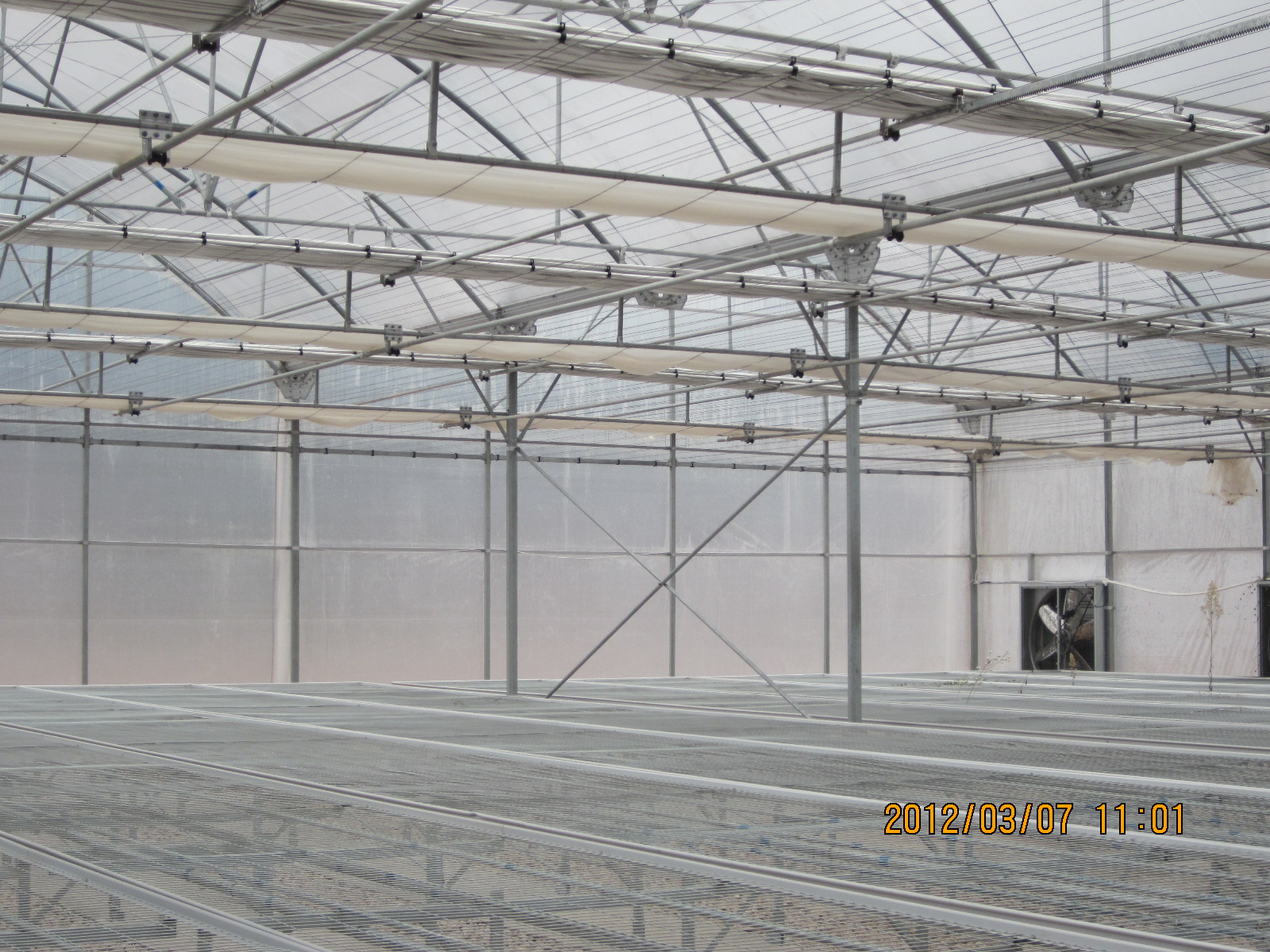

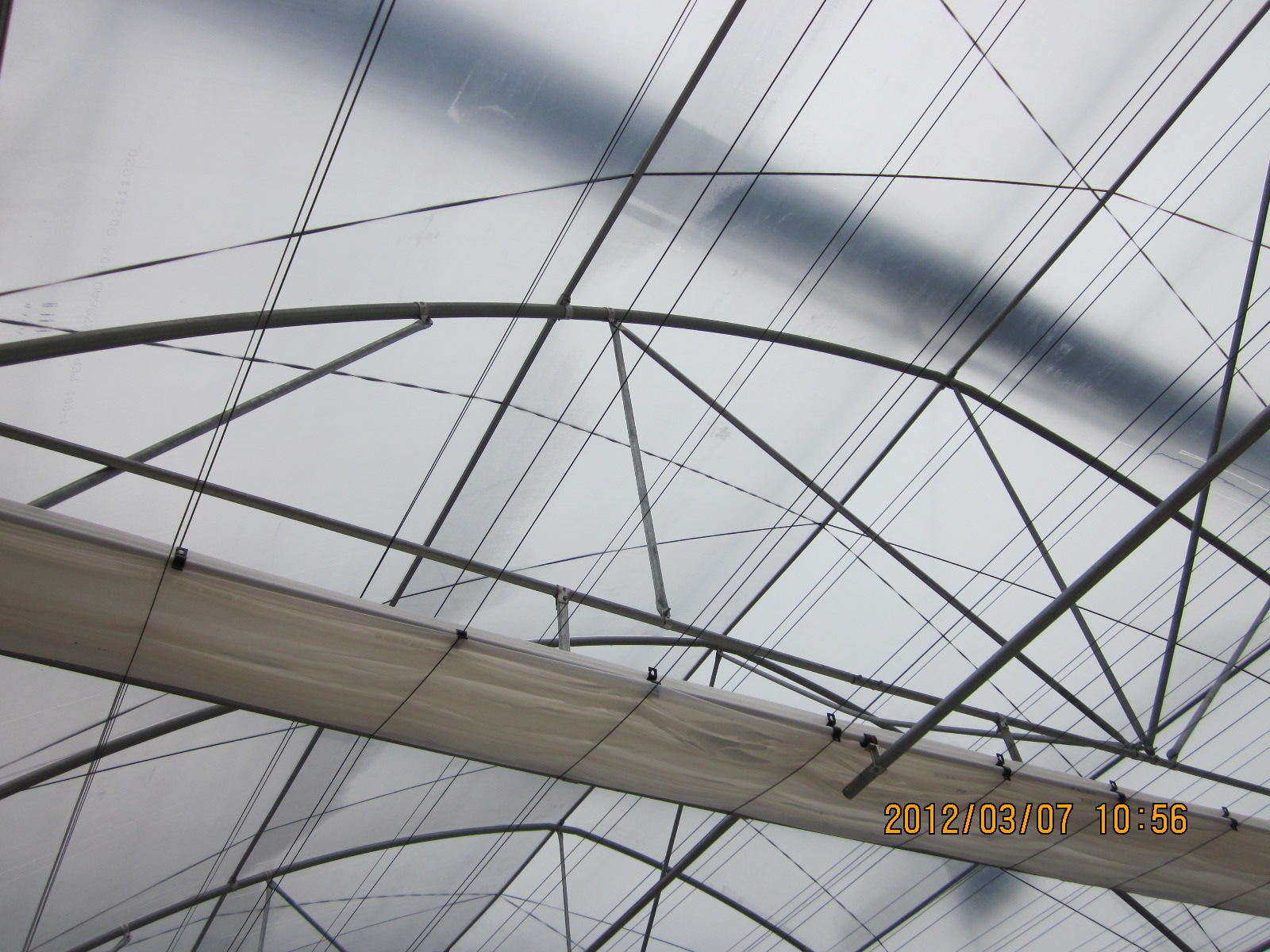

• Shade and Energy Curtains
• Watering Booms
• Hanging Basket Systems
• Monorails

Roof Bars

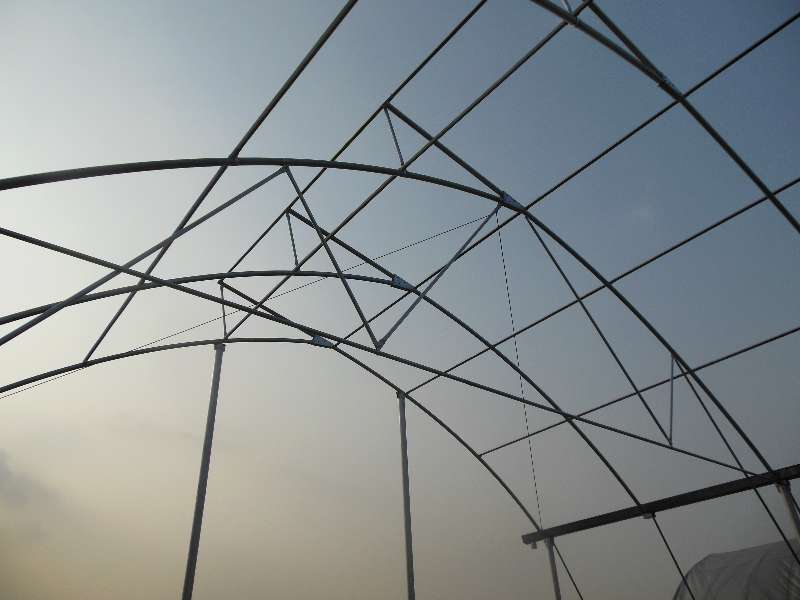

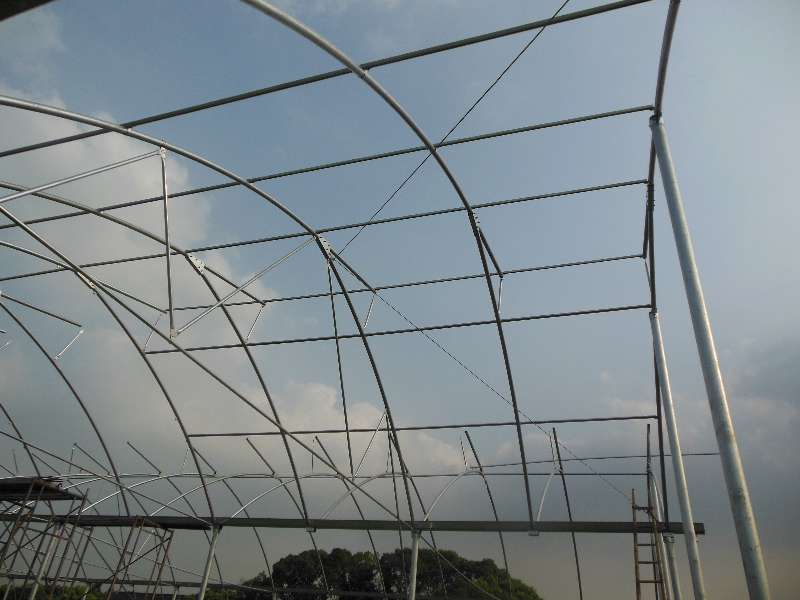

The Roof Bows are made of galvanized structural steel tubing. Ridge Ridge and crosstie are also galvanized steel tubing.

Roof Glazing Options
• 6 mil double poly inflated film
• 8mm polycarbonate house - aluminum extruded glazing bars with aluminum extruded cap.

Ventilation
With optional roof vents our Poly Arch house provides superior ventilation.

Vent Location
Bottom rail of roof vent to be located approximately 3'(914.4mm) up from the gutter and when fully open will be higher than the ridge, allowing warmest air to escape. This will also allow for ventilation when raining or when snow has accumulated in the gutter.

Vent Closure
Roof vent sash to be continuous aluminum bottom rail with weather stripping gasket and single snaplock attachment for roof covering

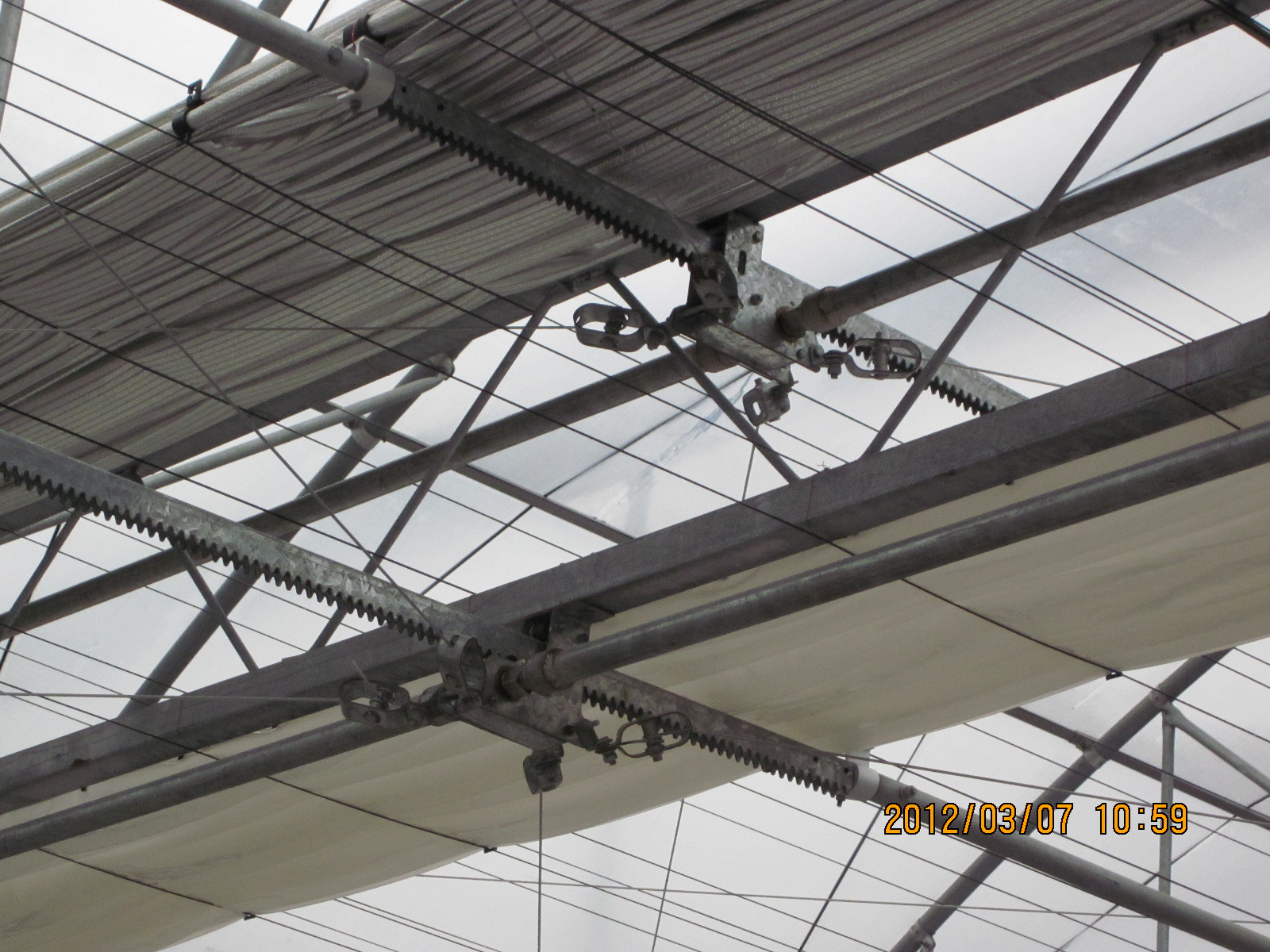

Rack & Pinion
A positive drive system shall be used with an easily understood and maintained rack and pinion drive system.

Drive Motor
Each roof vent can be driven with a single drive motor or many vents can be driven off one motor.

Control Box
Each motor will have a reversing motor control box to wire the motor.

Computer Control
The PolyArch house can be controlled with an environmental control computer system.
